Answer
When working with layered documents, it’s important to understand the layer properties that influence printing behavior. This guide focuses on the settings available in the Layer Properties section under the Initial State > Print, which can significantly impact how your final printout looks.
Layer Printing Settings
There are three primary settings you can configure for each layer in your document:
- Print When Visible: This option ensures that the layer will only be printed if it is currently visible. If the layer is hidden, it will not appear in the printed document.
- Never Print: Selecting this option means the layer will never be printed, regardless of whether it is visible or hidden.
- Always Print: With this setting, the layer will print regardless of its visibility. Even if the layer is turned off, it will still appear in the printed output.
Identifying the Issue

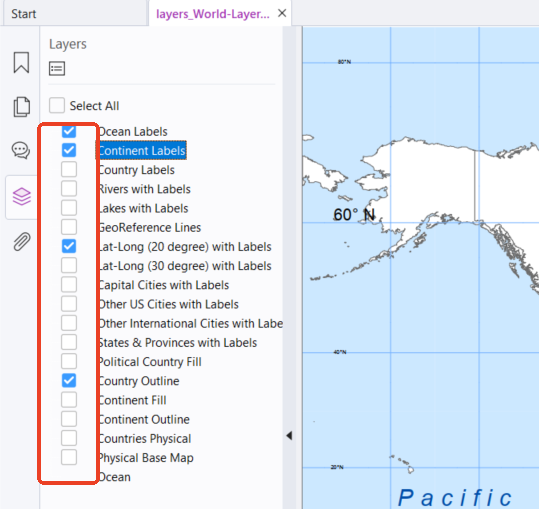

If you encounter issues where unwanted layers are being printed despite them being unchecked, it's likely due to the configuration of their print properties. In many cases, users may overlook that certain layers have been set to "Always Print." This means that these layers will be included in the printout irrespective of their visibility status.
Solutions
To resolve the issue of unwanted layers being printed, follow these solutions:

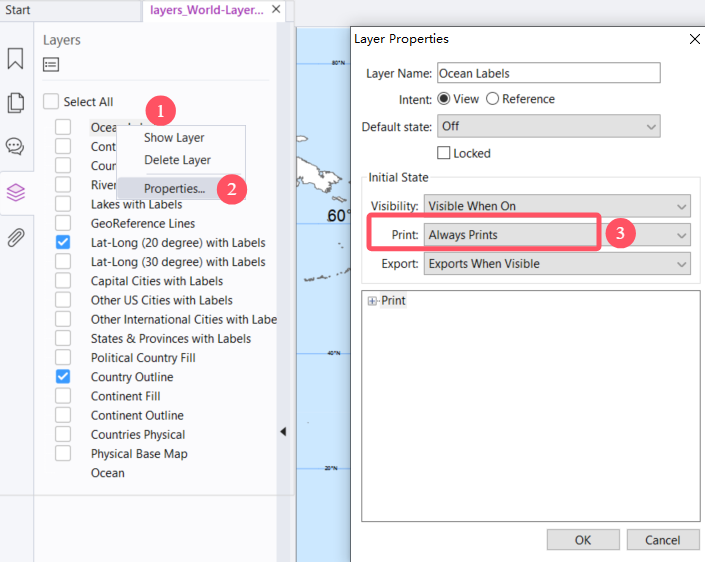

Solution 1 Adjust Layer Print Settings (if you have edit permissions):
Review the print settings for the layers in your document. If you wish to prevent a layer from printing, change its setting from "Always Print" to either "Print When Visible" or "Never Print," depending on your needs.

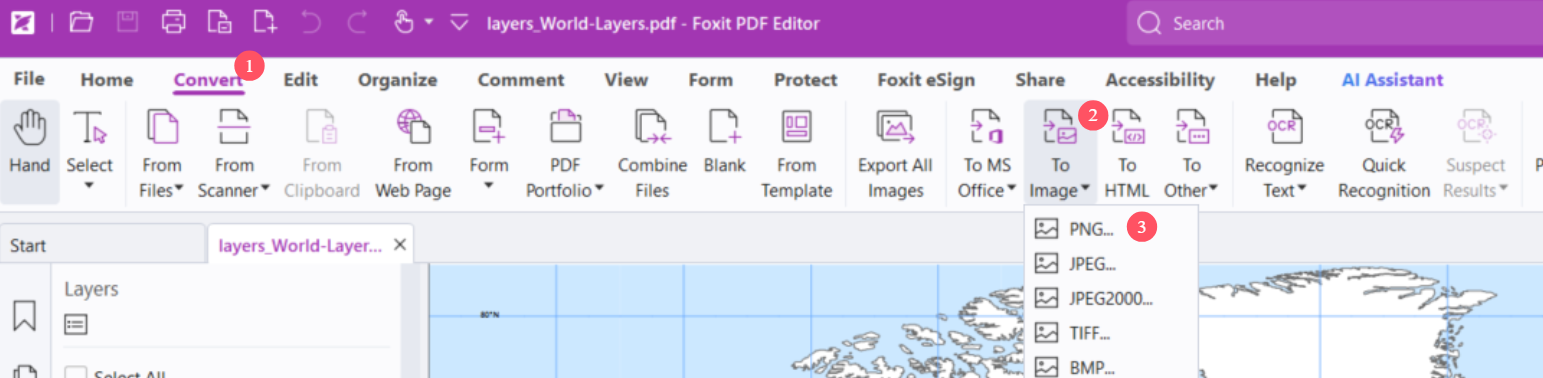

Solution 2 Export as an image (if you don't have editing permissions):
- Select the layer you wish to print.
- Use the export function to convert the layer into an image format.
- Open the exported image and print it.
